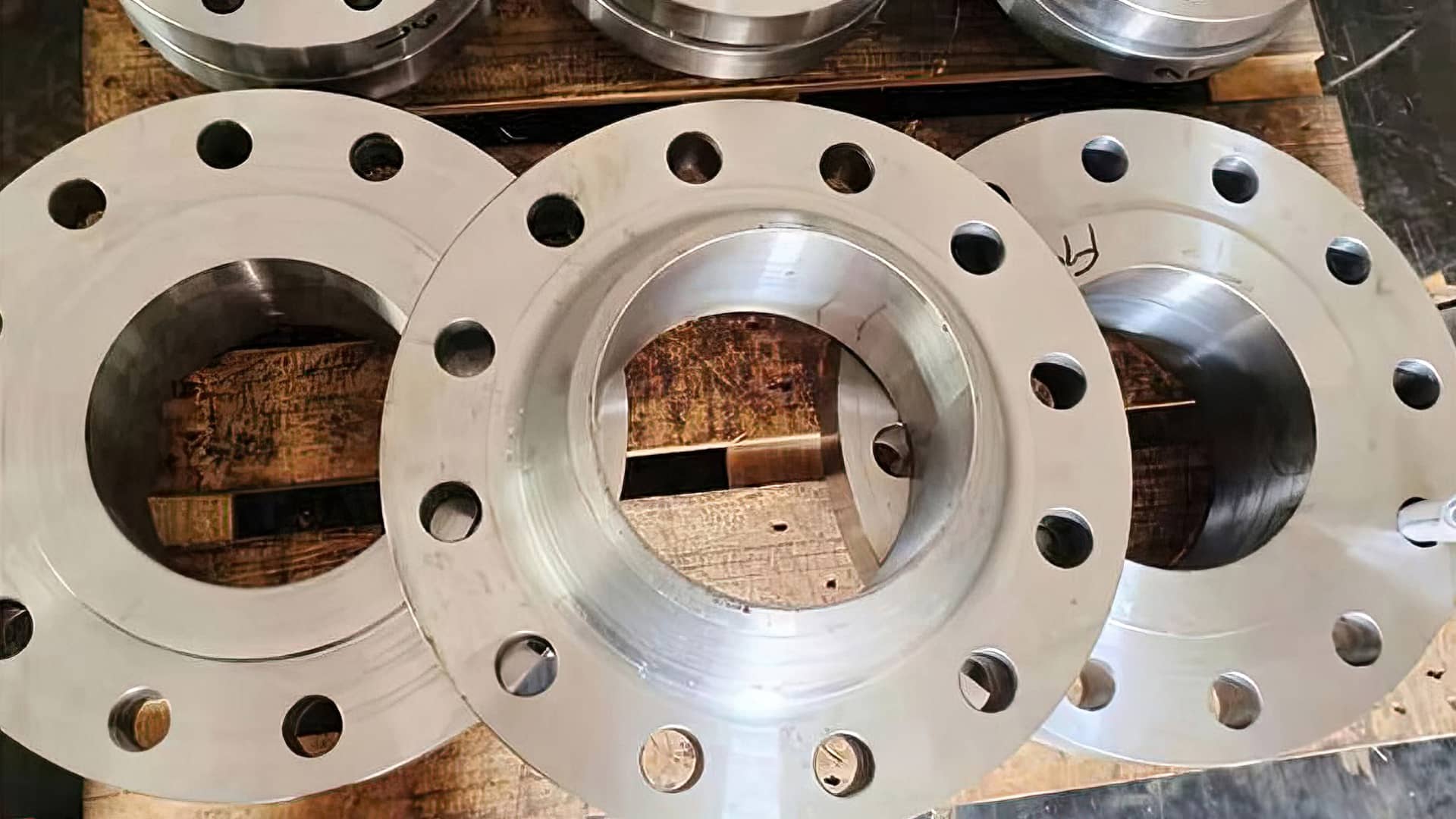

22507 Flat weld flange

22507 Flat Welded Flange is a commonly used pipe connector, mainly used for connecting and fixing pipelines. It is manufactured from mild or low-alloy steel, and the pipe ends are welded with flanges to achieve the sealing of the piping system. Flat welded flanges have a simple structure and easy installation, and are widely used in pipeline systems in petroleum, chemical, pharmaceutical, food and other industries.

1. Product introduction

22507 flat welded flange is a flange that is widely used in pipeline system connection, its design meets the GB/T 9123 standard, mainly made of mild steel or stainless steel materials, the sealing surface of the flange adopts a flat structure, is connected to the pipeline by welding, with simple structure, easy installation, low cost and other characteristics, suitable for the connection of low-pressure fluid transmission pipelines.

2. Common functions

22507 Flat Welded Flange is a metal component widely used in pipeline connections, and its main functions include: providing sealing performance for pipeline connections and ensuring the safety of media transmission; It is convenient for the installation and disassembly of pipelines and improves construction efficiency; withstand the internal pressure of the pipeline to ensure the stable operation of the pipeline system; Reduce the cost of the pipeline system and improve economic benefits. In addition, flat welded flanges also have the characteristics of simple structure, easy installation, and strong corrosion resistance.

3, common standard

flanges include GB/T 9123-2010, GB/T 13401-2005, JB/T 79-2000, ISO 5211, ANSI B16.5, DIN 2631, etc., which cover the design, manufacturing, and inspection requirements of flanges of different types, sizes, and pressure levels, and are widely used in petroleum, chemical, machinery, construction, and other industries.

4. Key parameters

When selecting 22507 flat welded flanges, it is necessary to comprehensively consider the pressure level, nominal diameter, material type, connection method, sealing surface form, temperature range, working medium and other parameters of the flange to ensure that the flange meets the performance, safety and compatibility requirements during use.

5. Selection points

22507 flat weld flange selection should comprehensively consider the matching of working conditions, ensuring that the selected standards are consistent with the system, the sealing performance is compatible, the cost is economically reasonable, and the installation specifications are comprehensively considered, and the most suitable flange type should be determined through system analysis, so as to ensure the safe, reliable and efficient operation of the entire system.

Jianing brand 22507 flat welded flange is favored in the market for its excellent manufacturing process and excellent performance. The flange adopts precision welding technology to ensure the stability and reliability of sealing performance, and has good corrosion resistance and pressure resistance, suitable for a variety of industrial piping systems, which can effectively reduce maintenance costs and improve system operation efficiency, making it a good choice for pipeline connections in the industrial field.

22507 Flat Welded Flange is a widely used flange for pipe connection, which is characterized by welded connection and is suitable for occasions with low pressure levels and little temperature change. This flange has the advantages of simple structure, easy installation, and good sealing performance. In the industrial field, flat welded flanges are favored by a wide range of users due to their good cost performance and reliability. Jianing company is committed to providing users with high-quality and high-standard flat welded flange products, and carefully do a good job in every flange to meet customer needs. Welcome users to leave a message to discuss and share their views on 22507 flat welded flange.
