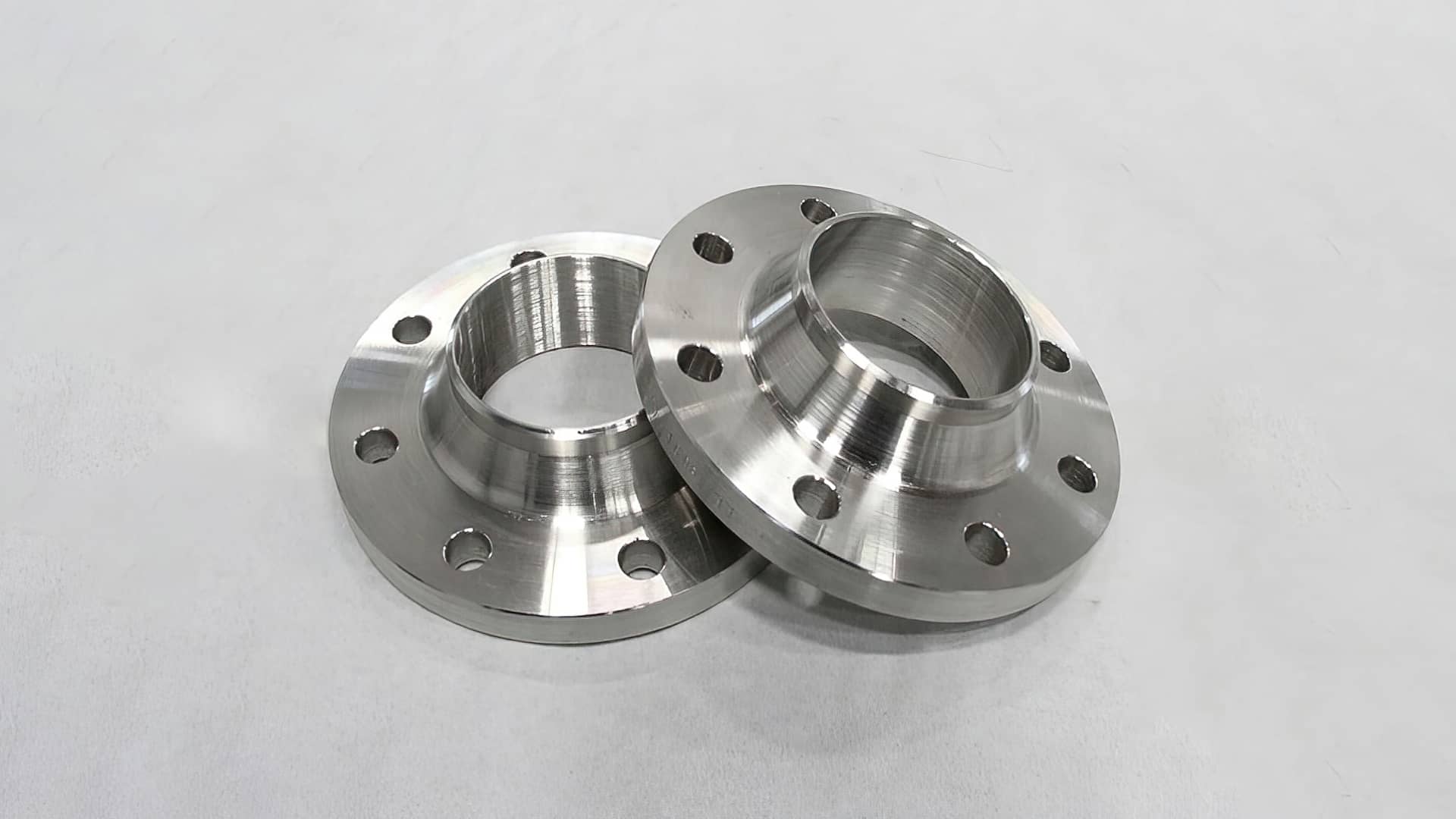

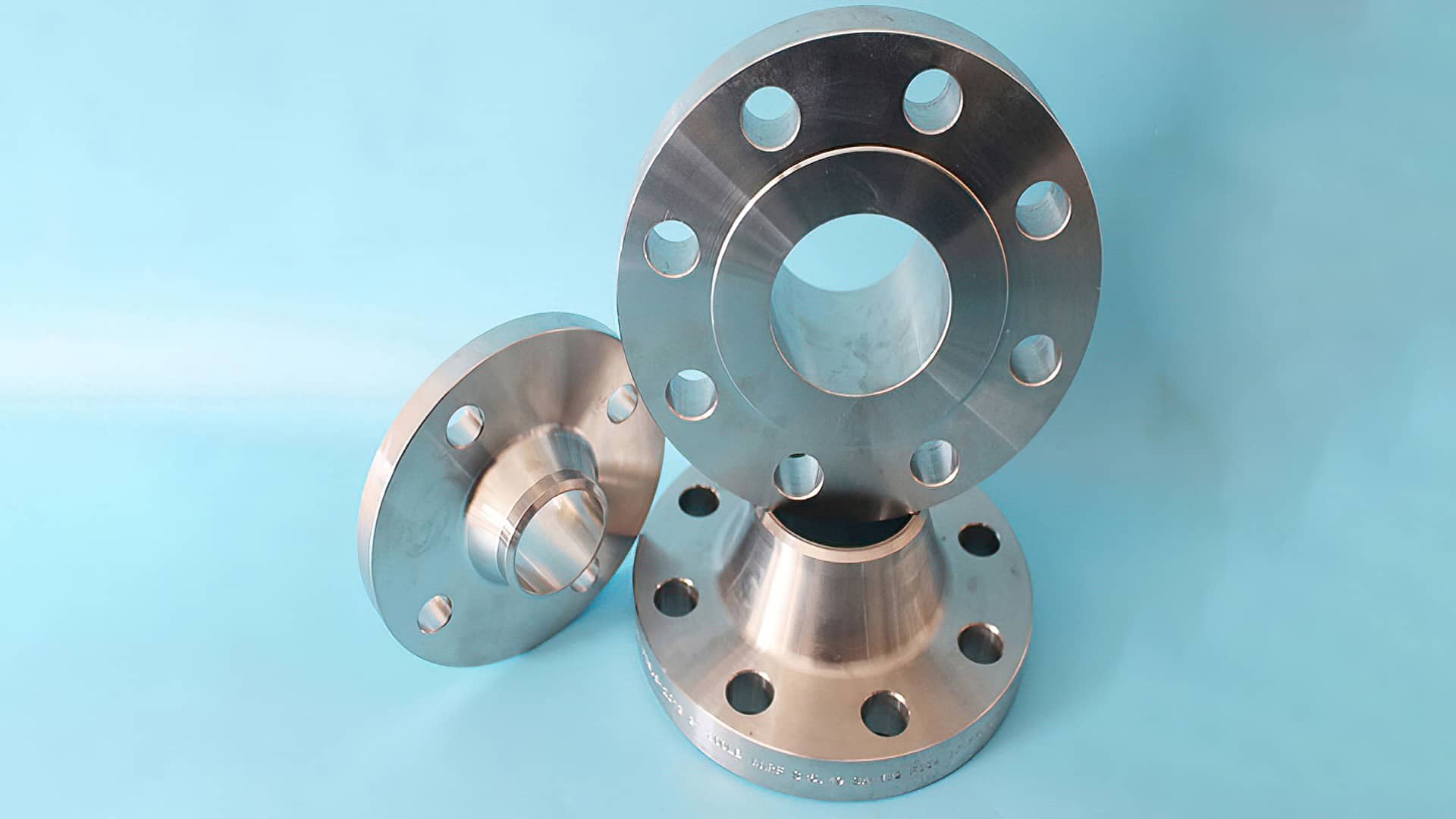

304 stainless steel flat weld flange

304 stainless steel flat weld flange is a common flange connection method, mainly made of mild steel or low alloy steel, the surface is hardfacing treatment of stainless steel 304 material, which has good corrosion resistance and mechanical strength. It is connected to pipelines by welding and is widely used in petroleum, chemical, pharmaceutical, food and other industries, and can meet the transportation needs of various high-temperature, high-pressure, and corrosive media.

1. Product introduction

304 stainless steel flat weld flange is a commonly used connecting component, made of 304 stainless steel material, mainly used for the connection of piping systems. The flange has excellent corrosion resistance and high temperature resistance, simple structure, easy installation, and is widely used in petroleum, chemical, food and other industries.

2. Common functions

304 stainless steel flat welded flange is widely used in the connection of pipeline systems, and its main functions include strong corrosion resistance to ensure the safe and stable operation of pipeline systems; Good sealing performance, effectively preventing media leakage; Easy installation, saving construction time and cost; Beautiful and elegant, enhance the overall visual effect of the piping system.

3, common standard

Commonly used standards for

flanges include ISO, ANSI, DIN, JIS, GB, etc., which cover flange products of different specifications, materials and pressure levels, such as ISO 7005, ANSI B16.5, DIN 2634, JIS B2220, GB/T 9124, etc., which are suitable for different industries and fields, such as petroleum, chemical, water treatment, pipelines, etc.

4. Key parameters

The following parameters should be comprehensively considered when selecting

304 stainless steel flat welded flanges: flange pressure level, nominal diameter, connection method, flange thickness, sealing surface type (such as flat surface, protruding surface, concave and convex surface, etc.), material properties (such as corrosion resistance, strength, etc.), operating temperature and pressure range, piping system design requirements, cost budget and other factors to ensure that the selected flange can meet the needs of practical applications and ensure the stability and safety of the system.

5. Selection points

When selecting 304 stainless steel flat welded flanges, it is necessary to comprehensively consider the matching of working conditions to ensure that the flange adapts to the specific working environment and pressure level; Follow the principle of unified standards and choose flange products that meet national or industry standards; Consider sealing compatibility to ensure that the flange and pipe connection can achieve a good sealing effect; Pay attention to economic rationality, and choose flanges with high cost-effectiveness under the premise of meeting performance requirements; At the same time, adhere to the installation specifications to ensure that the flange installation process complies with relevant safety standards and operating procedures.

Jianing 304 stainless steel flat weld flange is widely used in petroleum, chemical, electric power and other industrial fields due to its excellent corrosion resistance and good high-temperature resistance. The product is made of high-quality stainless steel material, ensuring the strength and tightness of the flange, while its flat surface treatment gives it a beautiful appearance and is easy to install and maintain. Jianing 304 stainless steel flat weld flange not only ensures product quality, but also pays attention to energy conservation and environmental protection, providing users with efficient and reliable flange solutions.

304 stainless steel flat weld flange, made of high-quality 304 stainless steel material, has the advantages of corrosion resistance, high temperature resistance, high tensile strength, easy installation and so on. It is widely used in petroleum, chemical industry, water treatment and other fields. The product structure is reasonable and the welding process is exquisite, ensuring the sealing performance of the flange. With advanced production technology and strict quality control, Jianing Company produces high-quality flanges for you.
