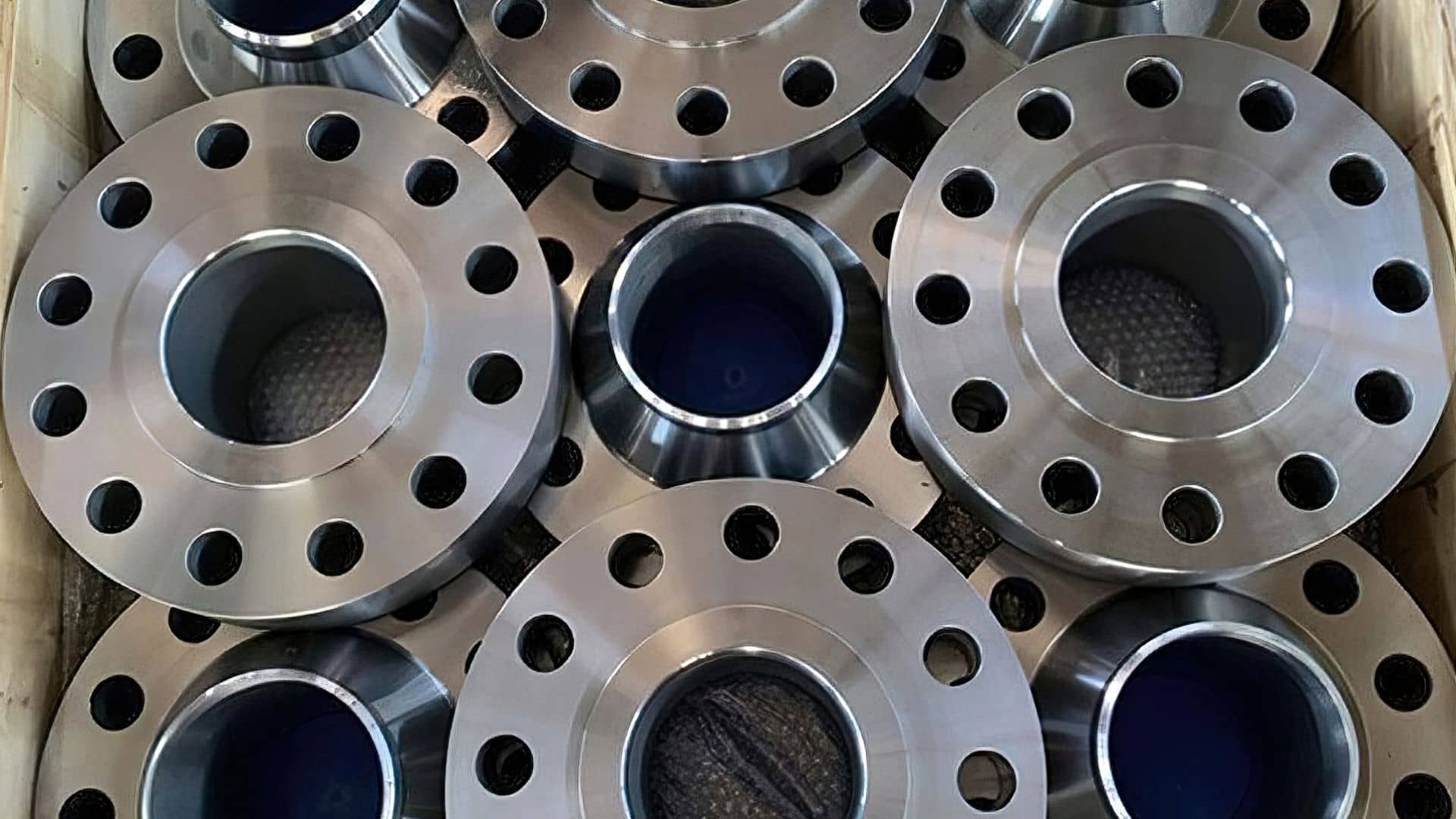

31603 Flat weld flange

31603 flat weld flange, also known as plate flat weld flange, is a kind of welded flange that is widely used in the connection of pipeline systems. The flange consists of a flat plate and internal and external threads, with the edges of the plate machined to form an arc shape to accommodate the welding of the pipe. Flat welded flanges have good sealing performance and structural stability, and are suitable for working conditions with low pressure levels and little temperature changes, and are widely used in petroleum, chemical, electric power and other industries.

1. Product introduction

31603 Flat Welded Flange is a commonly used welded flange, made of high-quality carbon steel or alloy steel, suitable for pipeline connection, characterized by high connection strength and good sealing performance, widely used in petroleum, chemical, electric power, pharmaceutical and other industries. This flange connects pipes by welding, has good corrosion resistance and high temperature resistance, is easy to install, and is widely used in various industrial piping systems.

2. Common functions

31603 Flat Weld Flange is a widely used equipment for pipe connection, its main functions include ensuring the tightness of pipeline connections, withstanding certain pressure and temperature, facilitating the installation and disassembly of pipelines, and its flat welding structure is also convenient for on-site welding operations, improving construction efficiency and reducing costs.

3, common standard

flanges include GB/T 9112-2010, GB/T 9123-2010, GB/T 12224-2010, JB/T 79-2007, HG/T 20594-2009, EN 1092-1, EN 1092-2, ASME B16.5, ASME B16.47, etc., which cover different types, sizes, pressure ratings, and material specifications of flanges, suitable for petroleum, chemical, and machinery , construction and other industries.

4. Key parameters

When selecting 31603 flat welded flanges, it is necessary to comprehensively consider the nominal pressure, nominal diameter, connection method, material (such as 316 stainless steel), flange thickness, sealing surface form (such as RF, FF, RTJ, etc.), temperature range, dielectric characteristics, welding requirements and other factors to ensure the applicability and safety of the flange. At the same time, installation space, pipeline system design, and economy need to be considered to ensure that the selection is reasonable and meets actual engineering needs.

5. Selection points

In the process of selecting 31603 flat welded flanges, it is necessary to comprehensively consider the matching of working conditions to ensure that the flange performance meets the needs of the use environment; follow the principle of unified standards to ensure that the selection meets national standards and industry standards; Pay attention to sealing compatibility to ensure the sealing performance of the flange connection; At the same time, considering economic rationality, under the premise of meeting performance requirements, choose cost-effective products; Finally, follow the installation specifications to ensure that the installation process of the flange meets relevant requirements to ensure the safe and stable operation of the entire system.

Jianing 31603 Flat Welded Flange stands out for its excellent corrosion resistance and excellent welding performance, making it suitable for a wide range of media and environments. The flange is manufactured from high-quality stainless steel materials, ensuring its wide range of applications in industries such as chemical, petroleum, and food. Jianing 31603 flat weld flange has a simple structure, easy installation, and good sealing performance, which can effectively prevent media leakage and improve the safety of equipment operation. At the same time, its excellent high temperature and high pressure resistance make the flange work stably under high temperature and high pressure conditions, reduce maintenance costs, and bring higher economic benefits to customers.

31603 Flat Welded Flange is a widely used connecting component in piping systems, which is characterized by welding the end of the pipe with the flange to realize the connection of pipelines. The flange material is usually stainless steel 316, which has good corrosion resistance and high temperature resistance. The design of flat weld flanges is simple, easy to install, and suitable for working conditions with low pressure and low temperature. In the industrial field, flat welded flanges are widely used in petroleum, chemical, water treatment and other industries due to their excellent cost performance and reliability. Jianing company is committed to providing customers with high-quality products and services.
